Description
Compact powerhouse
Clarion’s XC2410 4-channel amplifier delivers 50 watts RMS per channel from a chassis that’s about the size of your hand. This micro-sized amp can fit almost anywhere, even behind many dashboards. And Clarion managed to pack more watts per square inch inside this little powerhouse than almost any other 4-channel amp made.
Ready for outdoor work
The XC2410’s circuits are coated on both sides for protection, so this amp is a great candidate for powering speakers in ATVs, boats, and other challenging applications. Clarion nickel-plated all the connectors to resist corrosion and ensure electrical flow, even during harsh conditions.
Super-clean signal
The XC2410’s input circuitry resists the electronic noise common in cars, so you will enjoy clean, distortion-free music. Soft turn-on and turn-off circuitry prevents potentially damaging thumps to your system as it powers on or off. Variable high-pass filters help you clarify the sound by eliminating the extremely low bass that your speakers can’t reproduce. You’ll also appreciate the high-level inputs, so you can hook this amp up to almost any system, even to factory radios without RCA connections.
Product highlights:
- 4-channel amplifier
- 50 watts RMS x 4 at 4 ohms (75 watts RMS x 4 at 2 ohms)
- 150 watts RMS x 2 bridged at 4 ohms (4-ohm stable when bridged)
- CEA-2006 compliant
- Class D amp technology
- double-sided conformal-coated circuit board — suitable for power sports and marine applications (not waterproof)
- corrosion-resistant nickel-coated connections
- built-in ground loop isolation circuitry reduces input noise
- variable high-pass filter (15-250 Hz, 12 dB/octave)
- preamp and speaker-level inputs
- 10-gauge power and ground leads recommended — wiring and hardware not included with amplifier
- fuse rating: 40A x 1
- dimensions: 8″W x 1-11/16″H x 3-1/4″D
- warranty: 1 year
- MFR # XC2410
- Item # 020XC2410
What’s in the box:
Clarion XC2410 owner’s manual
If you need assistance accessing this owner’s manual, please give us a call.
- 4-Channel amplifier
- 40-amp ATO fuse (installed in-line)
- 9″ Power/Ground harness
- 9″ Speaker-level output harness
- Four 3/4″ Self-tapping screws
- 4 Flat washers
- Owner’s manual (English/ French/ Spanish)
- Warranty information
Features & specs
| Performance | ||
|---|---|---|
| RMS Power Output (Watts x Channels) | 50 x 4 | |
| Peak Power Output (Watts x Channels) | 100 x 4 | |
| Power at 2 Ohms (Watts x Channels) | 75 x 4 | |
| Power at 1 Ohm (Watts x Channels) | — | |
| Bridged Power (Watts x Channels) | 150 x 2 | |
| Minimum Impedance Bridged | 4 | |
| Minimum Impedance Unbridged | 2 | |
| Best Frequency Response | 20-30k Hz | |
| THD at Rated RMS Power | 1% | |
| Signal to Noise Ratio | 70 dB | |
| Input Voltage | 14.4v | |
| Features | ||
| Amplifier Class | D | |
| Built-in DSP | No | |
| Remote Control | No | |
| Low-Pass Crossover Frequency | N/A | |
| Low-Pass Slope (dB/octave) | N/A | |
| High-Pass Crossover Frequency | 15-250 Hz | |
| High-Pass Slope (dB/octave) | 12 dB/octave | |
| Bass Boost | No | |
| Bass Boost Frequency | N/A | |
| Fan Cooled | No | |
| Fuse Rating | 40 | |
| Speaker Level Inputs | Yes | |
| Preamp Outputs | No | |
| Width (inches) | 8 | |
| Height (inches) | 1-11/16 | |
| Depth (inches) | 3-1/4 | |
| Parts Warranty | 1 Year | |
| Labor Warranty | 1 Year | |
Product Research
Features

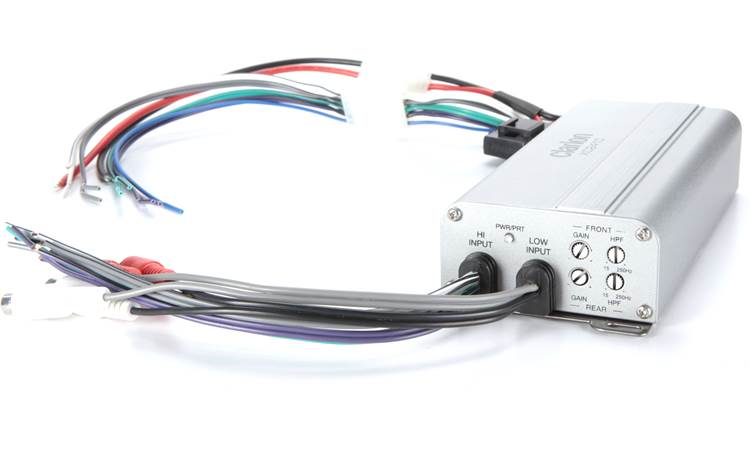

RCA Inputs: Two pair of female RCA line level inputs (front and rear) are attached to the left end of the amp with 7″ wires.
Speaker Level Inputs: The 8″ speaker level input wires are also attached to the left end of the amp.
Crossovers: The front and rear channels have built-in independent high pass crossovers. The crossover points are continuously variable from 15 Hz to 250 Hz and the slopes are 12 dB/octave.
Gain: The front and rear rotary gain controls are continuously variable; the range depends on which input you’re using:
- RCA: 200mV to 8V
- Speaker Level: 600mV to 20V

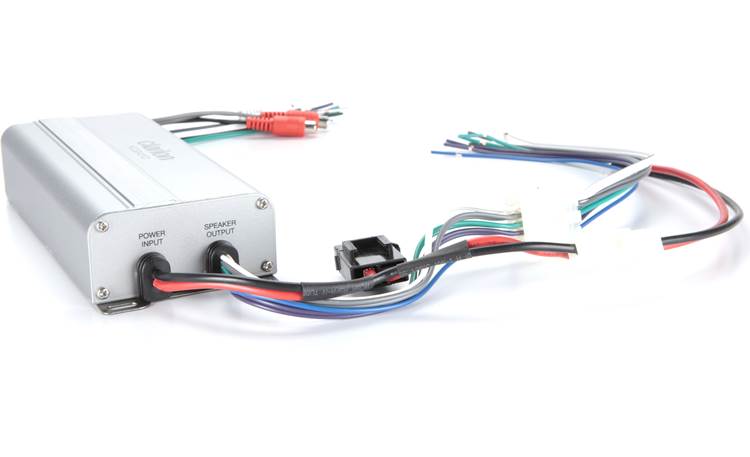

Power Harness: The included power harness plugs into a pigtail harness attached to the amp, for a total of 18″ power and ground wires. The power wire should be connected directly to the battery, so it will likely need to be extended using a 10-gauge or larger wire (the attached power and ground wires are both 12-gauge). An in-line fuse holder on the power wire holds the included 40-amp ATO style fuse and another in-line fuse should be added close to the battery.
Speaker Output Harness: The included speaker output harness plugs into a pigtail harness attached to the amp, for a total of 18″ speaker wires. The remote turn-on wire is also in the speaker output harness.
