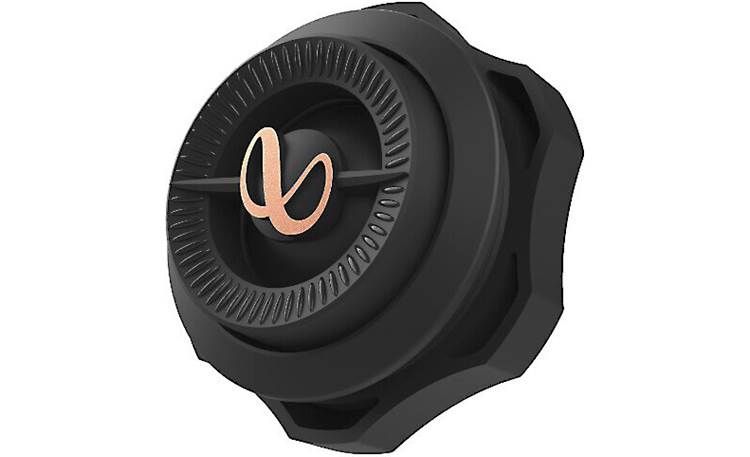

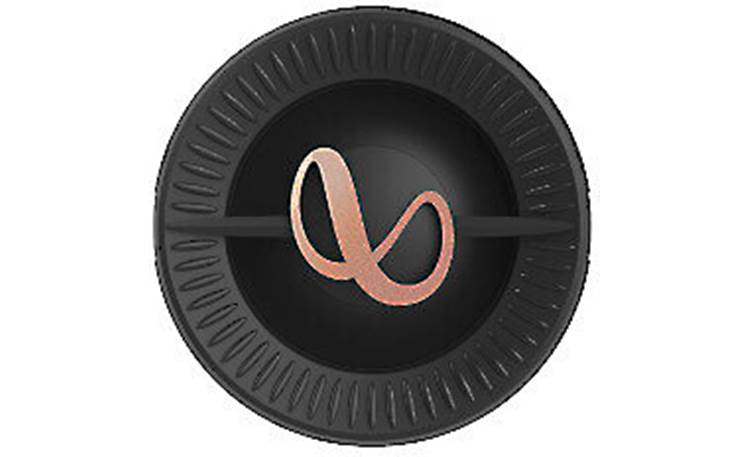

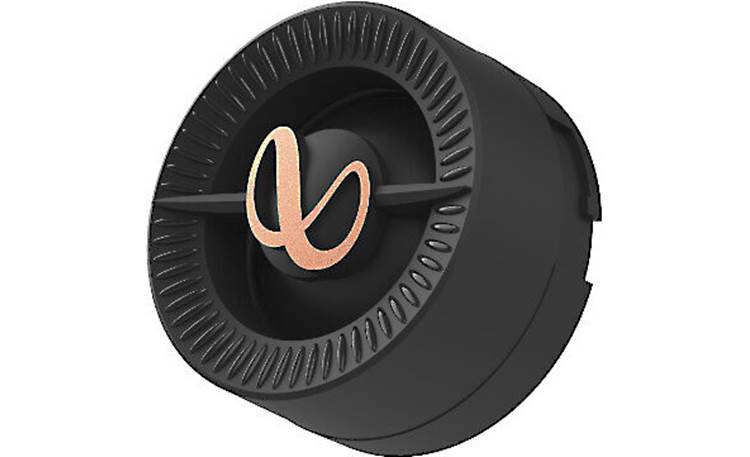

Infinity Primus 753T Primus Series 3/4″ tweeters

Features

Tweeter Mounting: The I-Mount tweeter mounting system and Starfish mounting brackets give you several different ways to mount the tweeters:

• I-Mount Mounting System: The tweeters can be surface or flush mounted:
  • Surface Mount: Surface mounting the tweeters involves screwing the surface-mount cup to the mounting location, then inserting and locking the tweeter into the cup.
  • Flush Mount: Flush mounting is made easy through the use of the threaded flush-mount housing and plastic locking nut. Once a cutout is made, the tweeter is installed in the flush-mount adapter, then into the flush mount housing and inserted into the hole. The large plastic locking nut is threaded onto the adapter (from behind the mounting surface) to hold the complete assembly securely in place. When flush mounted, the tweeters may be angled for optimum response and imaging.
• Starfish Mounting Brackets: The Starfish mounting brackets allow the tweeters to be installed in factory locations behind the grilles:
  • Bottom Mount: Once the Starfish bracket is trimmed, it is secured to the underside of the grille panel. The tweeter must be inserted into the bracket and locked into place before the bracket is mounted.
  • Surface Mount: Once the Starfish bracket is trimmed, it is screwed to the top of the mounting surface behind the grille panel. Then, the tweeter is inserted into the bracket and locked into place.
  • Flush Mount: There are two sets of tabs to flush mount the tweeter in the Starfish bracket, yielding different mounting dimensions. The upper tabs mount the tweeter completely below the opening and are glued in place. The lower mounting tabs are screwed in place and result in a mounting height just over 1/3 inch. Once the bracket is mounted, the tweeter is inserted into the bracket and locked into place.

Mounting Dimensions:

Crossovers: The included 18″ wires have in-line 12 dB/octave high pass crossovers with a crossover point of 5 kHz. The tweeter ends of the wires have quick-slide terminals that easily connect to the wires attached to the tweeters. The input end of each wire has tinned bare wire.

Crossover Dimensions:

• Length: 3½”
• Width: 1″
• Height: ¾”

Impedance: The Primus Series speakers feature 3Ω voice coils to compensate for the high in-line resistance of small gauge factory wiring and extract every watt from the factory receiver, increasing overall system output and efficiency (relative to 4Ω speakers). The speakers also benefit from increased power when you upgrade the wire and add after-market amplifiers capable of powering a lower impedance load.
