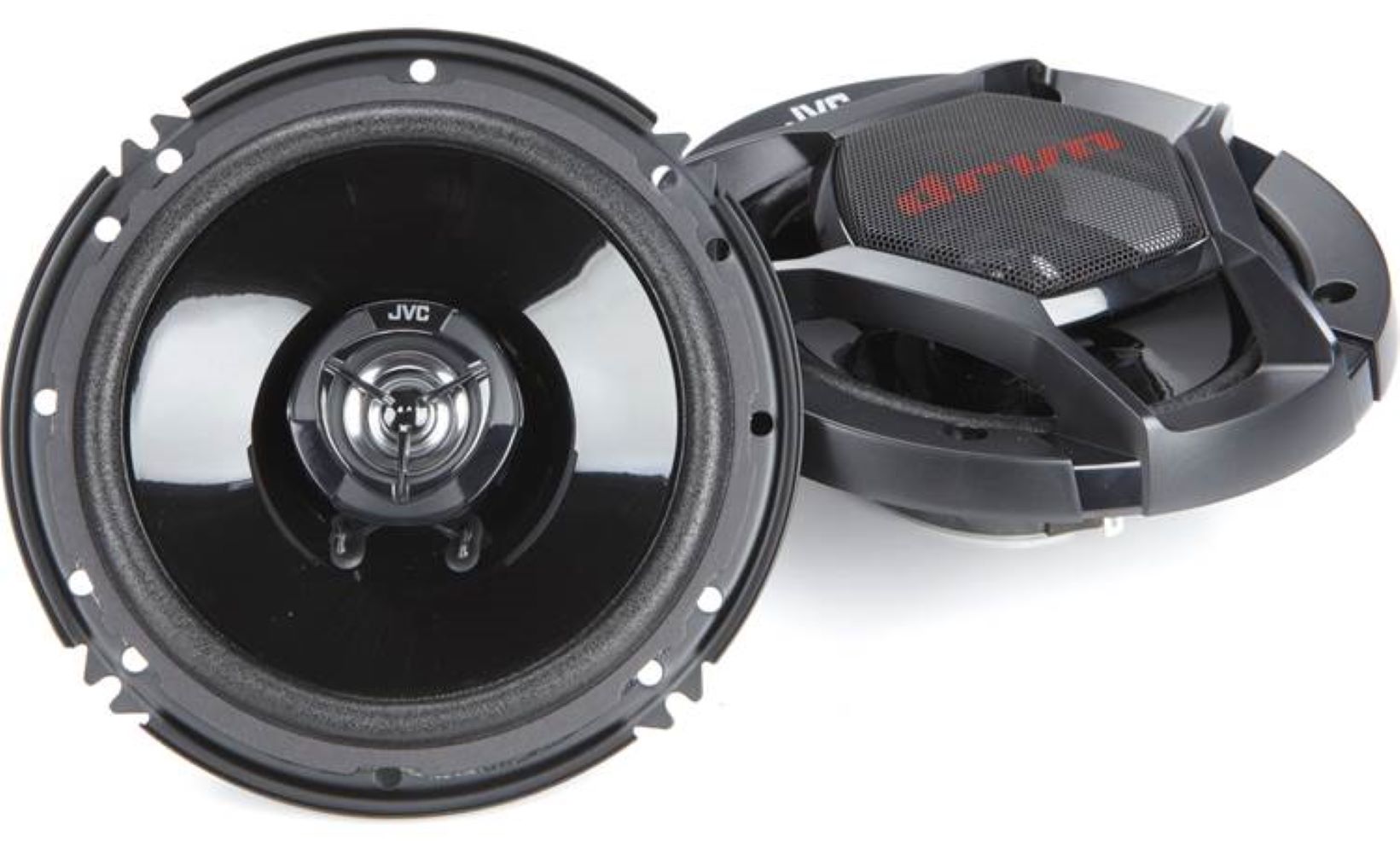

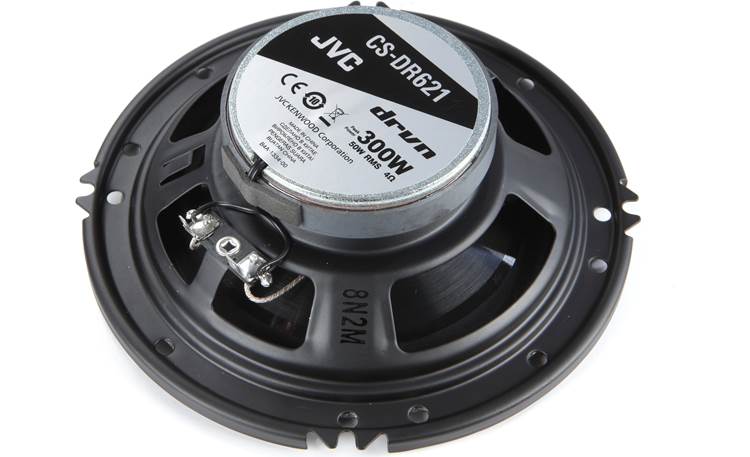

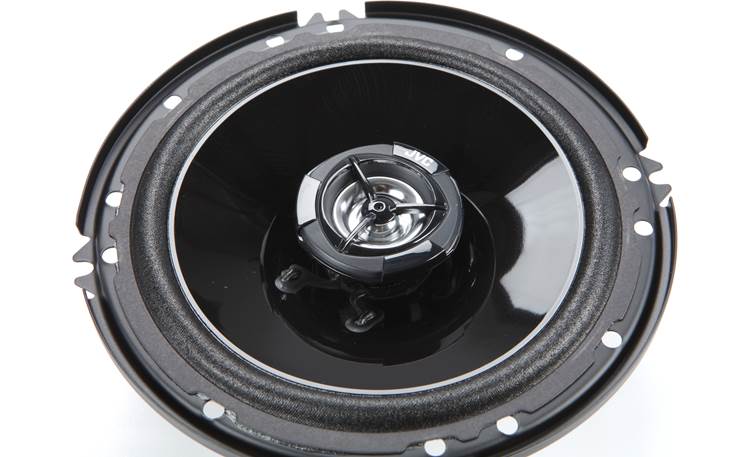

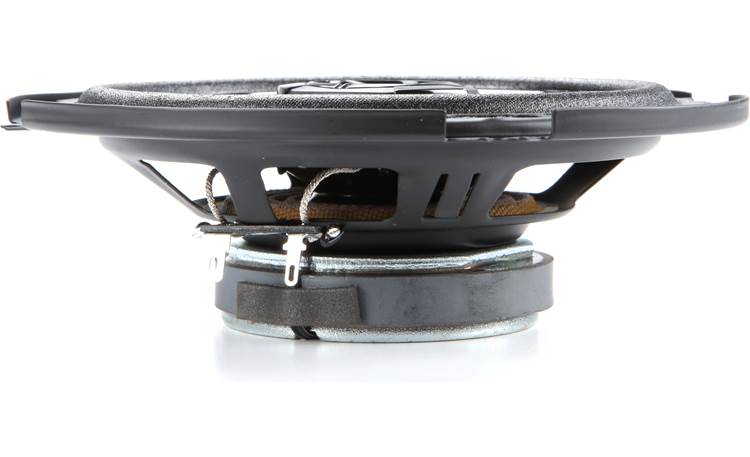

JVC CS-DR621 DRVN Series 6-1/2″ 2-way car speakers
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
$99.00
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Payment Methods:
Description
Bring on the music
Swapping out your fading factory speakers is a satisfying and often quick way to step up the sound quality in your ride. JVC’s CS-DR621 6-1/2″ 2-way speakers make the upgrade less of a strain on your wallet. Built to weather the extreme temperatures of life in your car doors, these slim-profile speakers offer strong performance with good power handling.
Solid boost in sound quality
JVC uses a lightweight yet durable carbon mica woofer cone for smooth, consistent mids and lows, plus a 1″ polymer film balanced dome tweeter that’ll increase your music’s clarity. Even when powered by your factory radio, your music will sound much better. Grilles are included.
Product highlights:
- 2-way car speakers
- 6-1/2″ carbon mica woofer
- treated cloth surround
- 1″ balanced dome polyetherimide (PEI) tweeter
- handles up to 50 watts RMS (300 watts peak power)
- frequency response: 85-23,800 Hz
- sensitivity: 89 dB
- top mount depth: 1-3/4″
- grilles included
- warranty: 2 years (1 year for Canada)
- MFR # CS-DR621
- Item # 105CSDR621
What’s in the box:
JVC CS-DR621 owner’s manual
If you need assistance accessing this owner’s manual, please give us a call.
- Two 2-way speakers
- 2 Grilles
- Two 12″ Lengths of speaker wire (each has female quick-slides on one end and bare wire on the other)
- Eight 1″ Screws
- 8 Speed clips
- Safety instructions
- Template and specifications on packaging
Features & specs
| General | ||
|---|---|---|
| Speaker Size | 6 1/2 | |
| Driver Design | 2-way | |
| Woofer Design | Cone | |
| Woofer Material | Carbon Mica | |
| Woofer Surround | Rubber Coated Cloth | |
| Midrange Design | — | |
| Midrange Material | — | |
| Tweeter Design | 1″ Balanced Dome | |
| Tweeter Material | Polyetherimide | |
| Super Tweeter Design | — | |
| Super Tweeter Material | — | |
| Impedance (Ohms) | 4 | |
| Weather-resistant | No | |
| Grilles Included | Black, Steel mesh, Plastic frame | |
| Parts Warranty | 1 Year | |
| Labor Warranty | 1 Year | |
| Specifications | ||
| Sensitivity (1W at 1 meter) | 89 | |
| Sensitivity at 2.83 volts | N/A | |
| Frequency Response | 85 – 23.8k Hz | |
| Maximum RMS Wattage | 50 | |
| Peak Power Handling (Watts) | 300 | |
| Top-mount Depth (Inches) | 1 3/4 | |
| Bottom-mount Depth (Inches) | N/A | |
| Cutout Diameter or Length (inches) | 4 15/16 | |
| Mounting Height (Inches) | 0.347 | |
| Frame Width | 6.285 | |
| Frame Length | 6.285 | |
The JVC CS-DR621 replaces these items:
- JVC CS-DR620
Product Research
Features
Balanced Dome Tweeter: Each speaker has a PEI (Poly-Ether-Imide) balanced dome tweeter. PEI is a polymer film that produces a wide soundstage for superior imaging. A semi-dome tweeter has a dome placed inside a cone; balanced dome tweeters are semi-dome tweeters with equal reproduction area given the cone and dome portions of the tweeter.
Mounting: The speaker baskets have multiple mounting holes and are designed to fit standard 3-hole 6½ applications, Ford’s 4-hole 6½ applications, and symmetrical 4-hole 6½ applications. The outer ears also mount in a standard 4-hole 6¾ application, but the inner holes are left open to “leak” air as the speaker cone moves. (When mounting in a 6¾ application, a speaker baffle should be used to seal the inner ring of screw holes.)
