Description
Titanium!

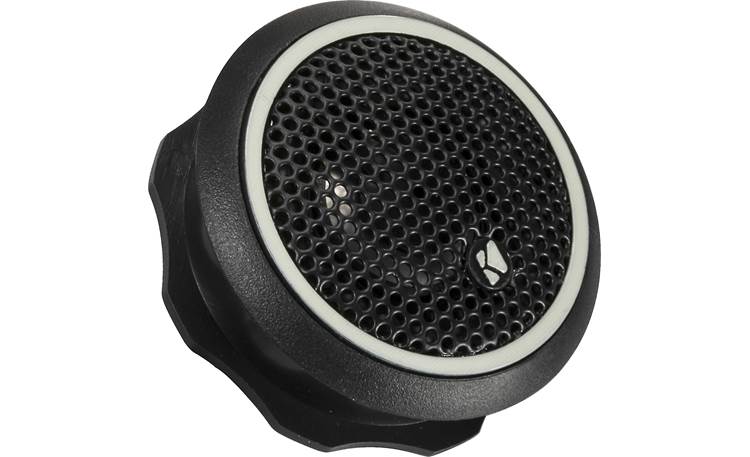

Experience the powefully crisp detail of Kicker’s 46CST204 titanium dome tweeters. Kiss your old muddy factory sound good-bye and boost your favorite jams with a fresh, live-performance feel. And three mounting possibilities, including adjustable tweeter pods, give you the flexibility you need to get these tweeters closer to your ears for an improved soundscape.
Product highlights:
- 3/4″ titanium dome tweeters
- hardware for flush-, surface-, pod-, and angle-mounting
- handles up to 50 watts RMS (150 watts RMS peak power)
- frequency range: 4,500-21,000 Hz
- in-line crossovers (4,500 Hz at 6 dB/octave)
- features neodymium magnets
- sensitivity: 92 dB
- top-mount depth: 9/16″
- warranty: 2 years
- MFR # 46CST204
- Item # 20646CT204

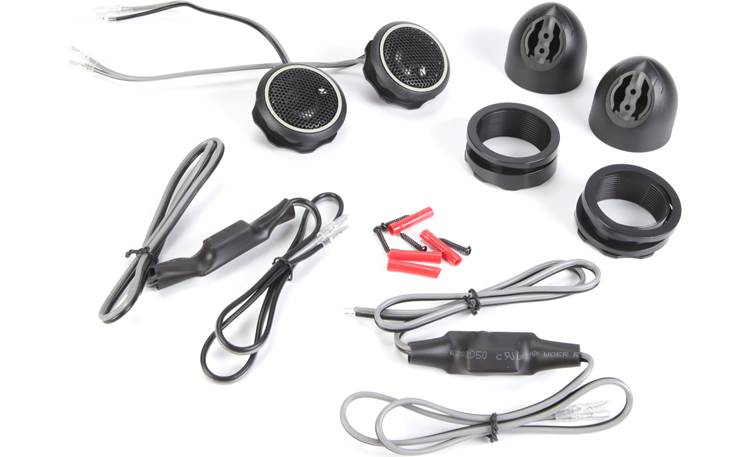

What’s in the box:
Kicker 46CST204 owner’s manual
If you need assistance accessing this owner’s manual, please give us a call.

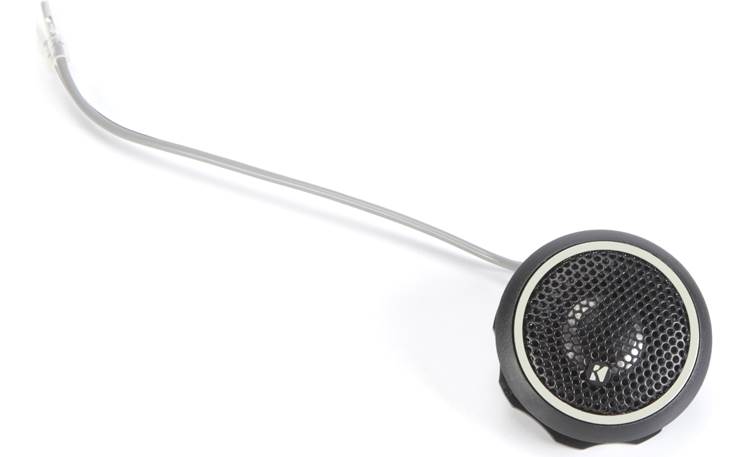

- Two 3/4″ Tweeters (each with 8″ Wire attached)
- Two 3.5′ Lengths of speaker wire with in-line crossovers (quick-slides on one end and tinned bare wire on the other)
- 2 Flush mount tweeter rings
- 2 Short tweeter mounting nuts
- 2 Long tweeter mounting nuts
- 2 Back angled tweeter rings
- 2 Front angled tweeter rings
- 2 Angled surface mount tweeter housings
- Four 5/8″ Screws
- 4 Red plastic wire caps
- Owner’s manual (English/ Spanish/ German/ French)
Features & specs
| General | ||
|---|---|---|
| Speaker Size | 3/4 | |
| Driver Design | 1-way | |
| Woofer Design | — | |
| Woofer Material | — | |
| Woofer Surround | — | |
| Midrange Design | — | |
| Midrange Material | — | |
| Tweeter Design | Dome | |
| Tweeter Material | Titanium | |
| Super Tweeter Design | — | |
| Super Tweeter Material | — | |
| Impedance (Ohms) | 4 | |
| Weather-resistant | No | |
| Grilles Included | Black steel, Fixed | |
| Parts Warranty | 2 Years | |
| Labor Warranty | 2 Years | |
| Specifications | ||
| Sensitivity (1W at 1 meter) | 92 | |
| Sensitivity at 2.83 volts | N/A | |
| Frequency Response | 4500 – 21k Hz | |
| Maximum RMS Wattage | 50 | |
| Peak Power Handling (Watts) | 150 | |
| Top-mount Depth (Inches) | 0 9/16 | |
| Bottom-mount Depth (Inches) | N/A | |
| Cutout Diameter or Length (inches) | 1 5/8 | |
| Mounting Height (Inches) | 0.275 | |
| Frame Width | 1.975 | |
| Frame Length | 1.975 | |
- Kicker 43CST20
Product Research
Features

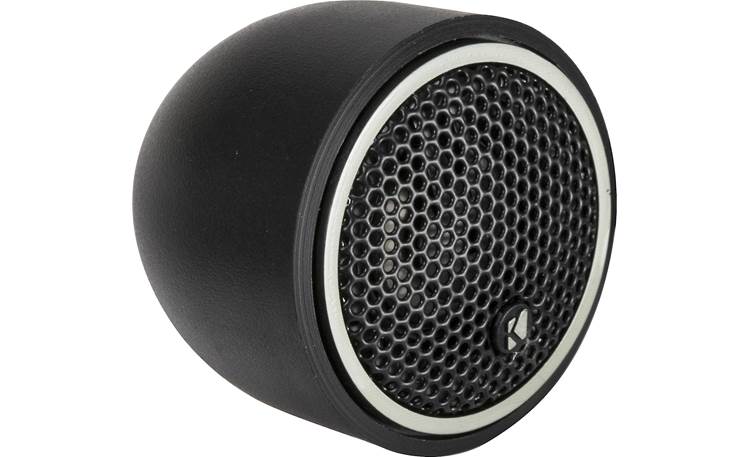

Mounting Options: The tweeters come with brackets to allow multiple mounting configurations: flush-mounted, angled flush-mounted (approximately 10°), and angled surface-mounted (approximately 45°).
Tweeter Dimensions:
| Flush Mount | Angled Flush Mount | Angled Surface Mount | |
|---|---|---|---|
| Mounting Height | 0.275″ | 0.662″ | 1.928″ |
| Depth | 0.548″ | 0.705″ | 0.491″ (screw depth) |
| Frame Diameter | 1.975″ | 1.975″ | N/A |
| Cutout Diameter | 1.570″ | 1.685″ | N/A |
| Frame Width | N/A | N/A | 1.887″ |
| Frame Length | N/A | N/A | 2.110″ |

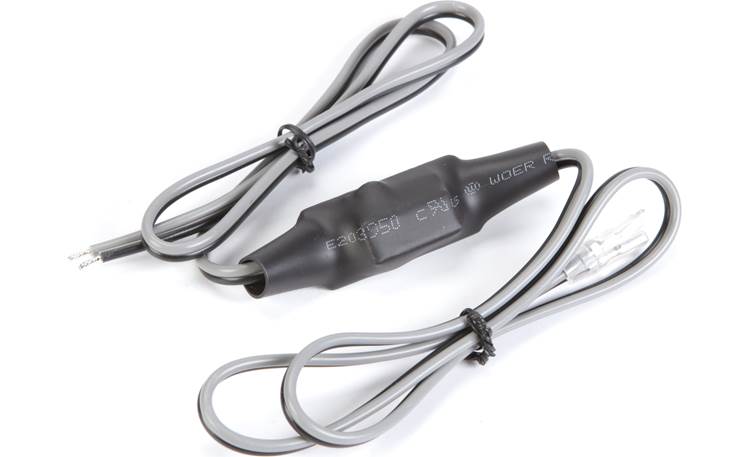

Crossovers: The passive crossovers are in-line with the included speaker wire. The slope is 6 dB/octave and the crossover point is 4,500 Hz. The crossover measures approximately ¾” at its thickest point.
