Description
Hand-crafted tweeters
Morel’s Supremo Piccolo tweeters are the same used in Morel’s flagship Supremo Series component speaker systems. In other words, they’re the very best tweeters that Morel makes — a shining example of what can happen when a passion for superb sound meets the latest speaker technology. Morel makes every Supremo Piccolo tweeter by hand and tests them to meet their premium standards.
External Voice Coil (EVC) technology maximizes the size of the voice coil in these tweeters.
Powerful look and sound

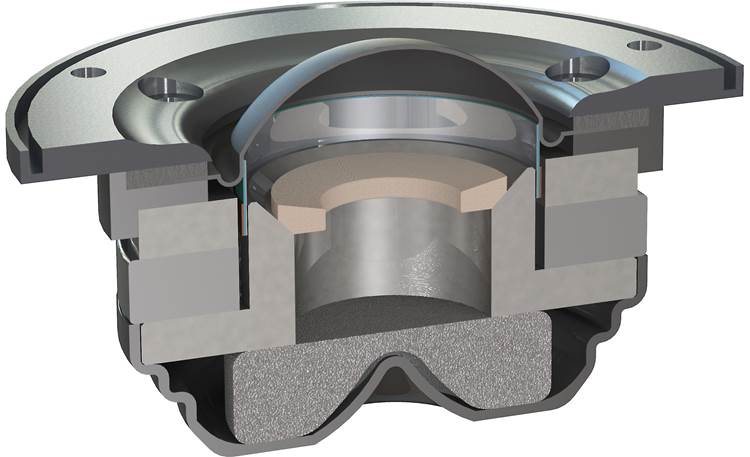

Morel coats this durable 1.1″ soft dome tweeter with their one-of-a-kind Acuflex™ compound to enhance damping for a cleaner, more natural sound. Handling up to 220 watts RMS, these tweeters provide a naturally detailed sound to improve the soundstage in your vehicle and add some refreshing high-frequency excitement. External Voice Coil (EVC™) technology maximizes the size of the voice coil in these tweeters for better heat dispersion and impressive power handling.
Installation candy
Morel complements the powerful sound with a powerful look — an aluminum faceplate and Lotus transparent grille for custom installations. Paired with Supremo’s MXR crossovers (not included), these tweeters are a perfect match for the Supremo mid-bass woofers.
Product highlights:
- 1-1/8″ Acuflex coated dome silk tweeter (pair)
- flush-mount hardware included
- machined aluminum build
- handles up to 220 watts RMS (1000 watts peak power)
- frequency response: 1,400-25,000 Hz
- impedance: 6 ohms
- sensitivity: 90 dB at 2.83 V
- flush-mount depth: 1-1/4″
- warranty: 2 years
- MFR # 323602-420
- Item # 210PICCTWR
What’s in the box:
Morel Supremo Piccolo owner’s manual
Features & specs
| General | ||
|---|---|---|
| Speaker Size | 28mm | |
| Driver Design | 1-way | |
| Woofer Design | — | |
| Woofer Material | — | |
| Woofer Surround | — | |
| Midrange Design | — | |
| Midrange Material | — | |
| Tweeter Design | Dome | |
| Tweeter Material | Silk | |
| Super Tweeter Design | — | |
| Super Tweeter Material | — | |
| Impedance (Ohms) | 6 | |
| Weather-resistant | No | |
| Grilles Included | Black steel, Lotus style | |
| Parts Warranty | 2 Years | |
| Labor Warranty | 2 Years | |
| Specifications | ||
| Sensitivity (1W at 1 meter) | N/A | |
| Sensitivity at 2.83 volts | 90 | |
| Frequency Response | 1400 – 25k Hz | |
| Maximum RMS Wattage | 220 | |
| Peak Power Handling (Watts) | 1000 | |
| Top-mount Depth (Inches) | 1 5/16 | |
| Bottom-mount Depth (Inches) | N/A | |
| Cutout Diameter or Length (inches) | 2 1/8 | |
| Mounting Height (Inches) | 0.495 | |
| Frame Width | 2.723 | |
| Frame Length | 2.723 | |
Product Research
Features

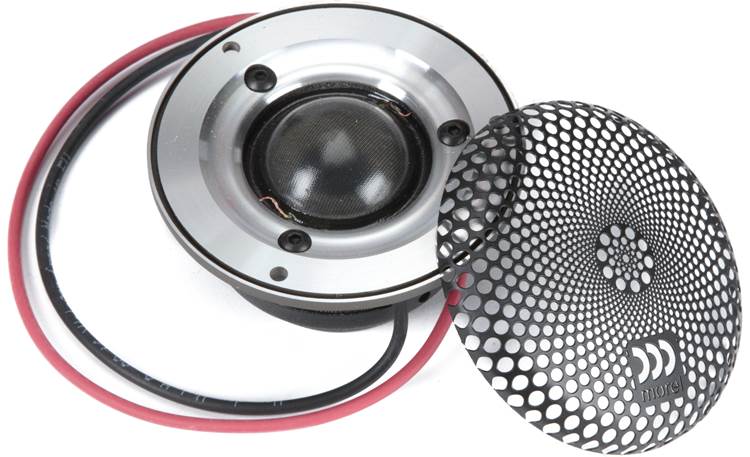

Mounting: The tweeter is designed to be flush mounted; it is built on a flush mount frame. The dome is very delicate, so the mesh grille should always be used.
Tweeter Dimensions:
| Flush Mount | |
|---|---|
| Mounting Height | 0.495″ |
| Mounting Depth | 1.280″ |
| Cutout Diameter | 2.095″ |
| Frame Diameter | 2.723″ |
Crossover: No crossovers are included with the tweeters, so an electronic or passive crossover must be added.
If you need assistance accessing this owner’s manual, please give us a call.
- 2 Tweeters (with attached 10″ length of speaker wire)
- 2 Lotus style grilles (installed)
- Six 3/4″ Screws
- 6 Speed clips
- Four 0.110″ Crimp-on female quick slides
- Genuine product verification instructions
- Tweeter response measurement verification
- Warranty card
