Rockford Fosgate P3SD2-8 Punch Stage 3 shallow 8″ subwoofer with dual 2-ohm voice coils

Features
Enclosure Compatibility

Features

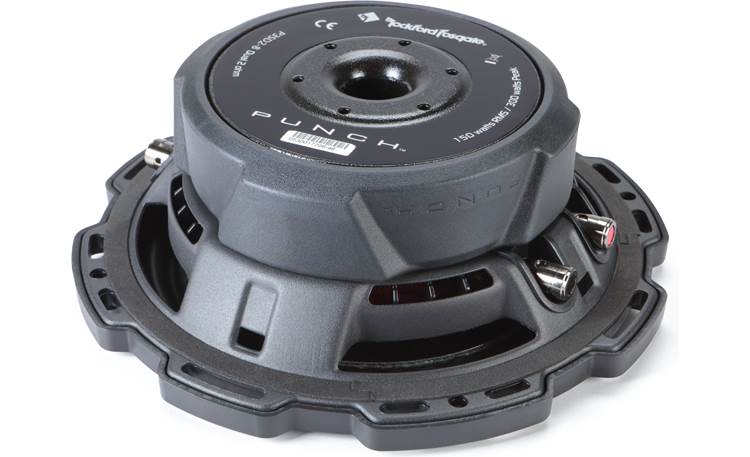

Shallow Mount Design: The Rockford Fosgate Punch P3S shallow subwoofer is designed and engineered with a more shallow motor assembly, reducing the overall depth of the woofer and allowing it to fit in smaller locations in your vehicle.

Dual Voice Coils: This woofer features dual 2-ohm voice coils for wiring flexibility. When the voice coils are wired in parallel, the woofer presents a 1-ohm load. When the voice coils are wired in series, the woofer presents a 4-ohm load.

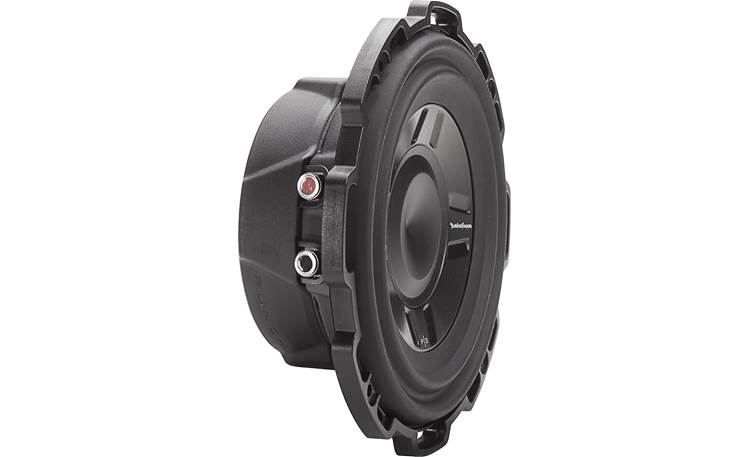

Compression Terminals: The P3SD2-8 features spring post terminals which accommodate pin connectors, single banana plugs, or bare speaker wire up to 10 gauge.

CEA-2031 Compliant: Power handling conforms to CEA-2031 industry standards, meaning the subwoofer has the capacity to handle its rated power under continuous demand, not just for an instant.

VAST Surround: The Vertical Attach Surround Technique (VAST) increases a speaker’s effective radiating cone area without increasing the size of the basket.

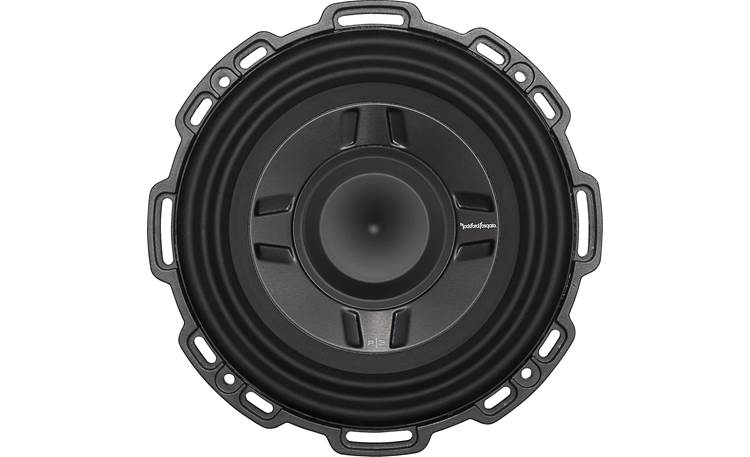

FlexFit Basket: The Flex Fit frame utilizes slots (where possible) instead of single screw sized holes; allowing slight adjustment of the speaker when mounted.

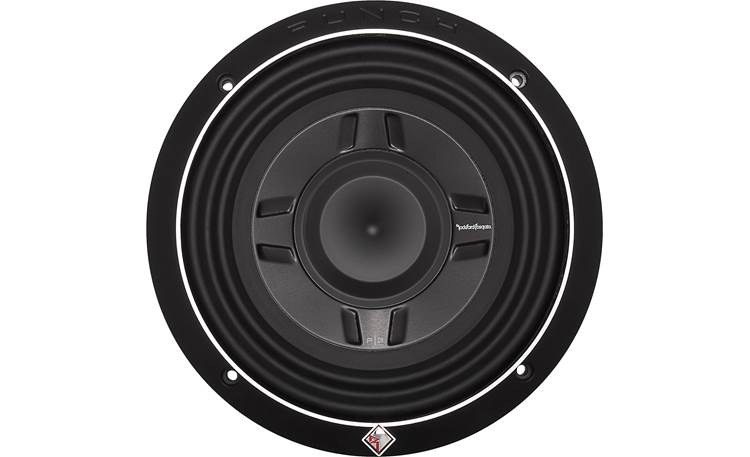

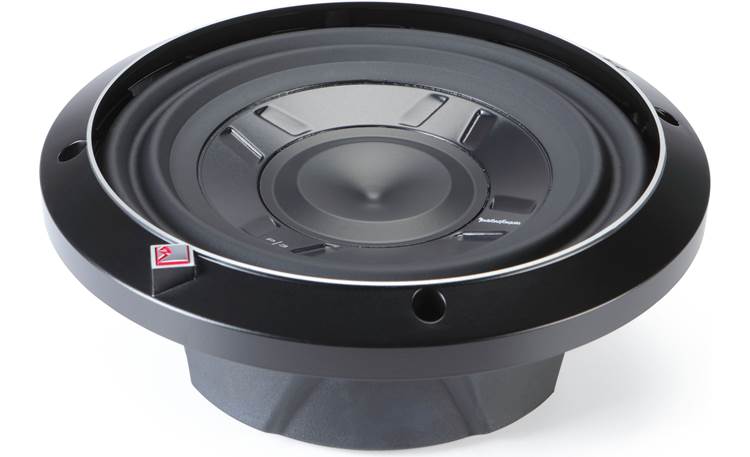

Trim Ring: For added cosmetic appeal the woofer comes with an aluminum trim ring that mounts over the flange of the woofer. When using the trim ring, the woofer is first mounted with four screws, then the ring is mounted over the woofer, aligning the final four holes of the woofer with the ring. The other four screws are used in these holes to mount the ring and woofer to the enclosure. The trim ring increases the mounting height of the woofer to approximately 1 inch, and the ring’s diameter is approximately 9 inches.

Enclosure Compatibility

Sealed Box: Rockford recommends a sealed enclosure with an optimum internal volume of 0.25 cubic feet (from 0.2 to 0.70 cubic feet is acceptable). Sealed enclosures provide the most control over a woofer, will handle a lot of power, and provide accurate sonic reproduction, making them suitable to all types of music.

Ported Box: Rockford recommends a ported enclosure with an internal volume of 0.75 cubic feet using one 3″ diameter x 9″ long port; this yields a tuning frequency of 47.5 Hz. Ported (or vented) enclosures typically provide better overall efficiency than sealed so they are suitable for use with smaller amplifiers, giving you more bass output from less power. However, this efficiency comes at the expense of very low frequency output (below 37 Hz).
